Product Center
1.Integrated design, atmospheric and beautiful
2.Resin filled-100% waterproof , no water leak
3.Super bright SMD2835 LED Chip, better heat releasing and
longer lifespan

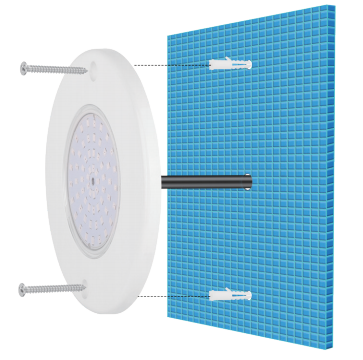

4.Easy installation-Just open a cable hole, and two small
screws holes andfix them on the wall
5.Super Slim, only 7.5 mm thickness, and very flat on the wall

Installation procedure:
1. Connect the wire to the converter ofAC12V (the lamp cannot be directlyconnected to 110V or 220V powersupply, otherwise the lamp will bebroken) | |

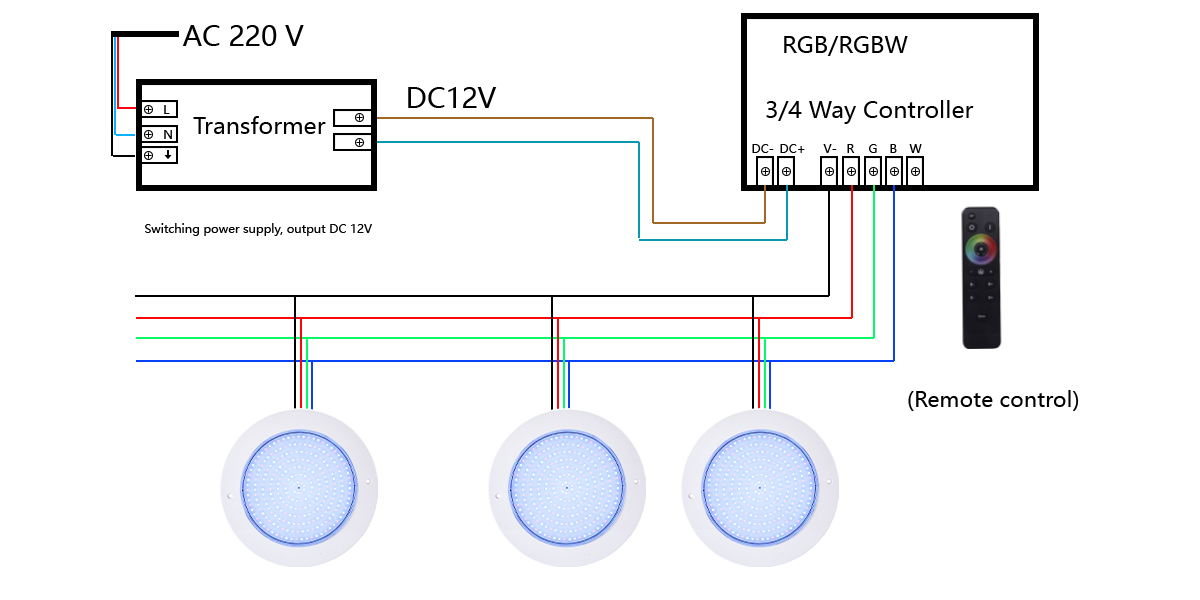

Wiring diagram:
