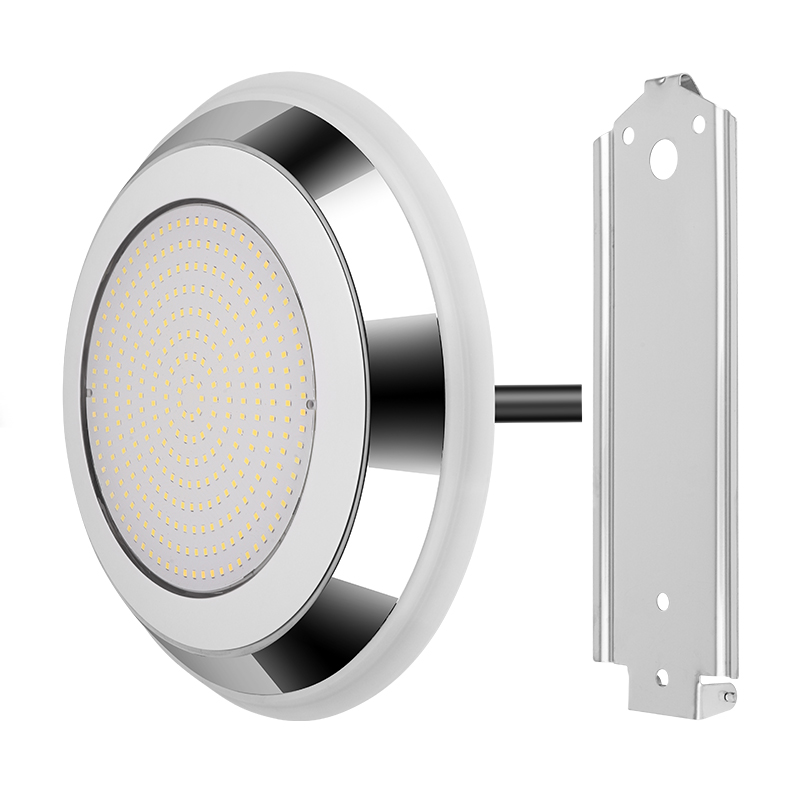

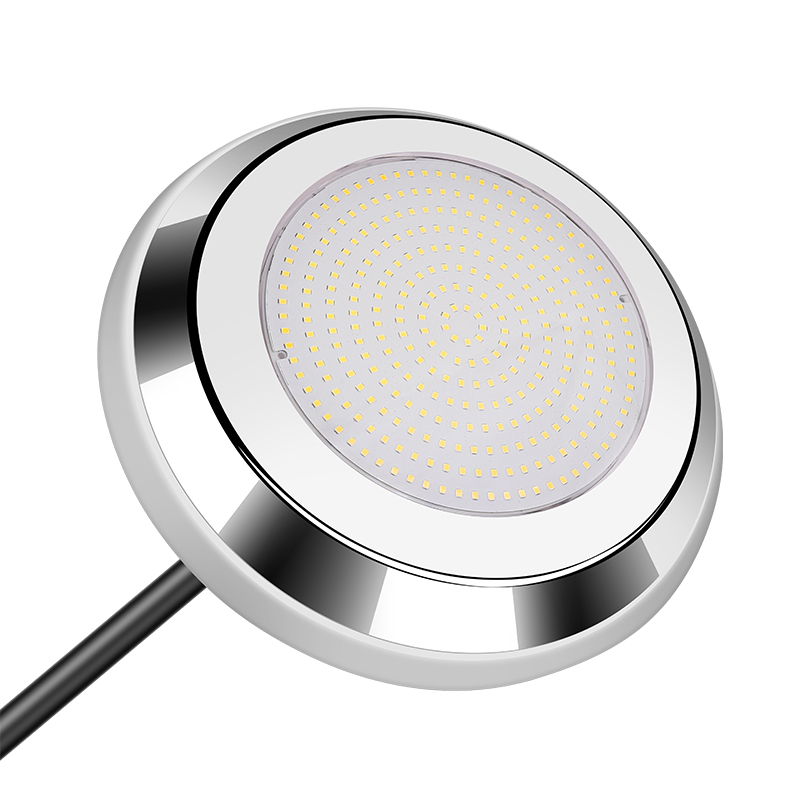

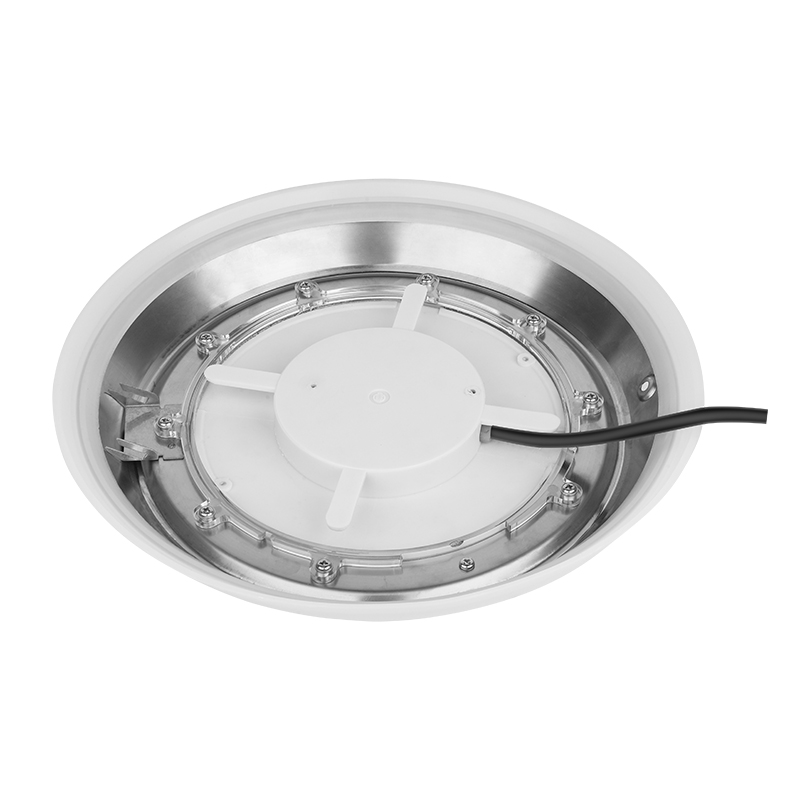

B280SS
1.100%Resin Filled -100% Waterproof
2.The LED's are driven by constant current driver which allows more stability3.Super brightness SMD2835 LEDs, we use Edison Brand LED Chip
4.Easy Installation- Just fix two screws on the wall
5.The most reasonable arrangement of LED enhance the brightness of the pool lights
6.Transparent resin protect the LED lamp from water ,at the same time , enhances the brightness of the LED

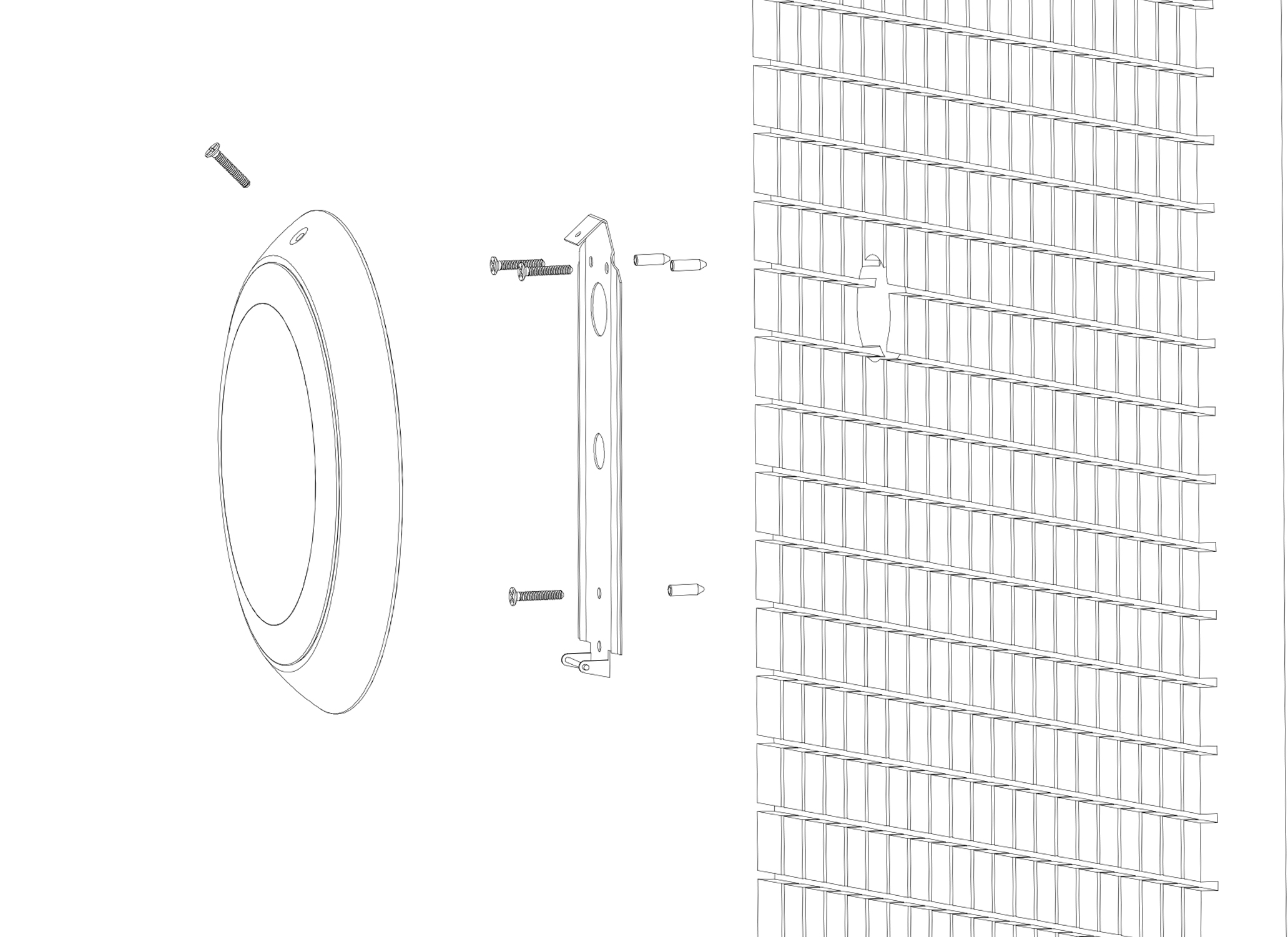

Installation procedure:
1.Remove the bracket from the lamp
2.Fix the bracket to the cement wall with screws3.Fix the lamp to the bracket with screws4.Connect the wires to the 12V converter (the lamp cannot bedirectly connected to a 110V or 220V power supply).
lt is stronglyrecommended to use a waterproof transformer or junction box
5..Suggested installation depth is 50CM
Wiring diagram:
